DETAILS

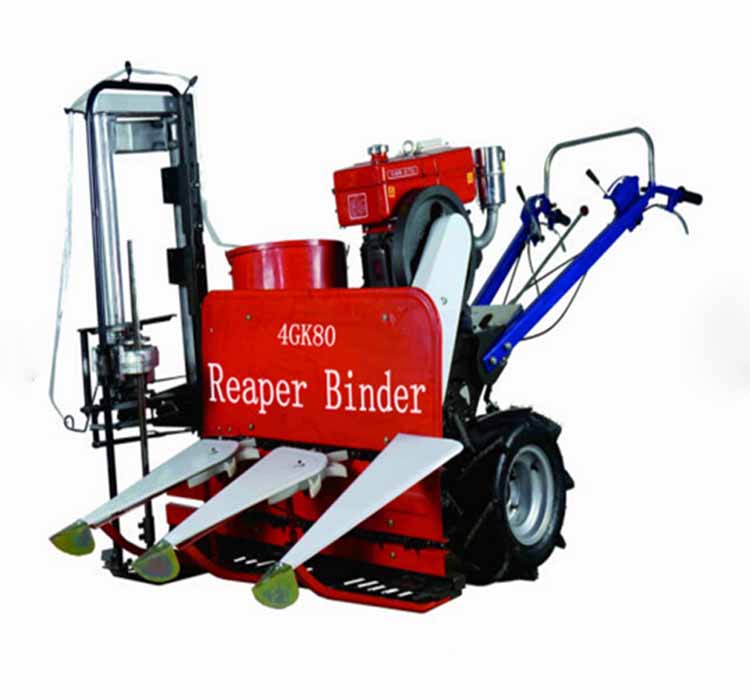

Introduction of Self-propelled Rice Binder / Combined Grain Reaper and Binder All-in-one Machine:
It is mainly used for rice harvesting and bunding. It is quite convient, quick and sime-saving.
Technical Parameters:
Model | LY4G-80 | LY4G-100 | LY4G-120 |
Cutting Width | 80cm | 100cm | 120cm |
Cutting Height | ≥50mm | ≥50mm | ≥50mm |
Placing Type | Sidewise & Banded Placed | Sidewise & Banded Placed | Sidewise & Banded Placed |
Productivity | 0.13-0.2hectare/h | 0.16-0.26hectare/h | 0.2-0.3hectare/h |
Matched Power | 4.0kw (5.5hp) | 3.64kw(4.5hp)/ 5.15kw(8hp) | 3.64kw(4.5hp)/ 5.15kw(8hp) |
JF168 Gasoline Engine | 170F Diesel Engine/ JF270 Gasoline Engine | 170F Diesel Engine/ JF270 Gasoline Engine | |
Gross Weight | 146kg | 250kg | 260kg |
Packing Size | 1.05*1.0*0.65m | 1.30*1.05*0.65m | 1.47*1.05*0.65m |
40HQ/40GP | 88/66 | 72/54 | 64/48 |
20GP | 30 | 24 | 24 |
