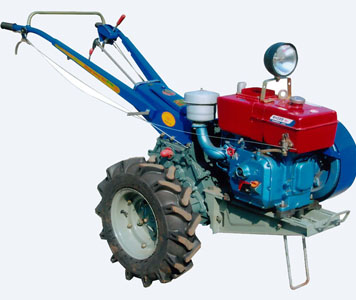

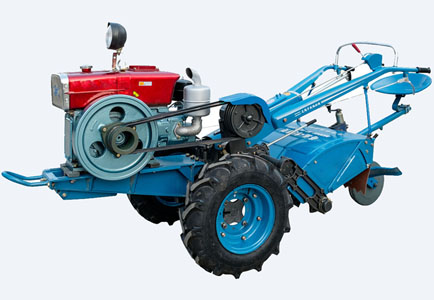

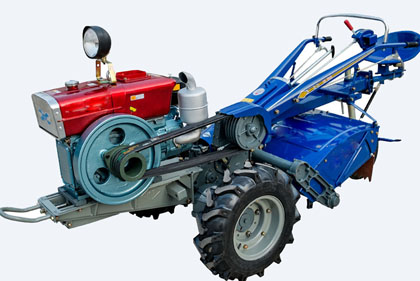

Introduction of 12HP Walking Tractor/Power Tiller:

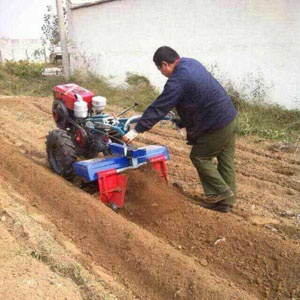

Walking tractors are suitable for operating in paddy field, dry field, orchard, greenhouse, hilly field. With matched accessories and farm implement, they can finish many operations such as ploughing, cultivating, harrowing harvesting, drilling, ditching, transporting, irrigating, sprinkling, spraying, threshing, seeding, milling, fooder cutting and so on.

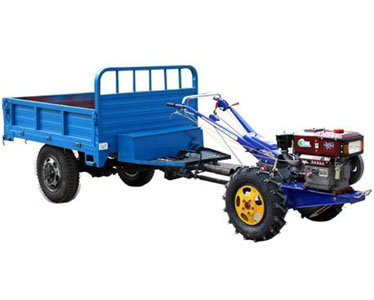

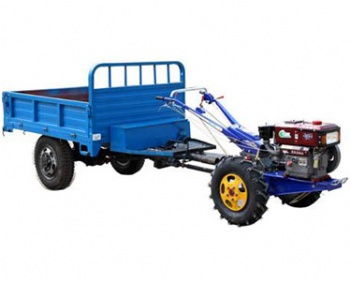

It is dual-function product that can be operated as the towing machine as well as driving machine. They have small and compact structure, light weight, long service life, reliable performance, easy operation and good running ability, also they are be assemble a seating equipment for driver.
Features of 12HP Walking Tractor/Power Tiller:
1.Manual /electric start ;
2.Fast delivery time;
3.6-20hp large power range;
4.Cheaper cost and easy control;
5.Condenser/evaporative;
6.More useful with every model implement for the farm.
Model of Power Tiller | Unit | LY-121L | LY-181L | LY-101A | |
Structure weight | Without rotavator | kg | 353 | 245 | 258 |
With rotavator | 458 | 310 | 350 | ||
Working weight (with rotavator) | kg | 493 | 350 | 395 | |
Overall dimensions (LxWxH) | mm | 2680 x 960 x 1250 | 2250x 900 x 1050 | 2700x 960 x 1220 | |
Number of blades | PCS | 18 | 14 | 16 | |
Rototilling width | mm | 600 | 700 | 700 | |
Type of tractor | Single axle, dual-purpose for both traction & drive | Single axle, dual-purpose for both traction & drive | Single axle, dual-purpose for both traction & drive | ||
Travelling speed | Forword | Km/h | 1.4,2.5,4.1,5.3,9.4,15.3 | 2.01, 3.32, 5.31, 6.76, 11.18, 17.86 | 2.19, 3.62, 5.79, 7.37, 12.20, 19.48 |
Reverse | 1.1, 3.8 | 3.28, 11.03 | 3.58, 12.03 | ||
Type size | 6.00-12 | 6.00-12 | 6.00-12 | ||
Wheel track | mm | 800, 740, 640, 580(normally use 800) | 650~730(normally use 730) | 650~790(normally use 790) | |
Min. ground clearance | mm | 185 | 214 | 214 | |
Min. turning radius | m | 0.9 | 0.9 | 0.9 | |
Model of engine | S195N | R185N | R185N | ||
Type of engine | Horizontal 4-stroke | Horizontal 4-stroke | Horizontal 4-stroke | ||
Bore x stroke | mm | 95×115 | 85×90 | 92×90 | |
Total displacement | L | 0.815 | 0.51 | 0.598 | |
Compression ratio | 20:01 | 21:01 | 18:01 | ||
Turing speed of crankshaft | rpm | 2000 | 2200 | 2400 | |
1-hour rated output | KW/hphp | 9.3/12.65 | 6.62/9 | 8/10.88 | |
12-hour rated output | KW/hp | 8.3/11.29 | 5.88/8 | 7.35/10 | |
Specific fuel consumption | g/kw.h | ≤258 | ≤281.4 | ≤281.4 | |
Specific lube oil consumption | g/kw.h | ≤2.04 | ≤2.04 | ≤2.04 | |
Starter | Electric starter | Electric starter | Electric starter | ||
Cooling mode | Condenser (Radiator) | Condenser (Radiator) | Condenser (Radiator) | ||
