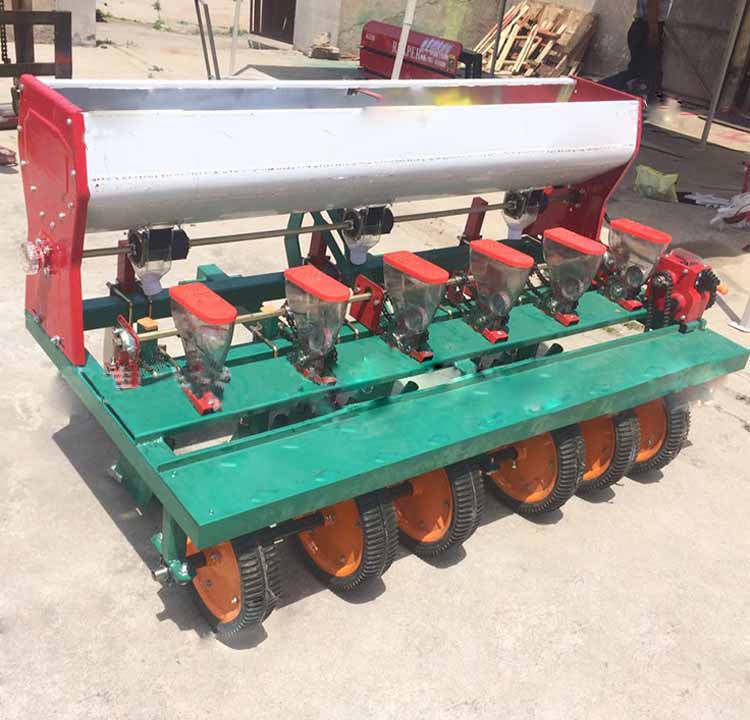

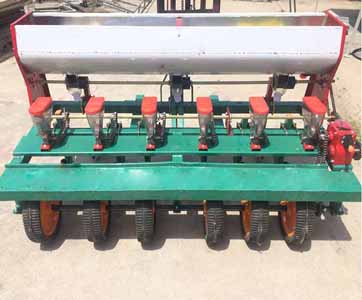

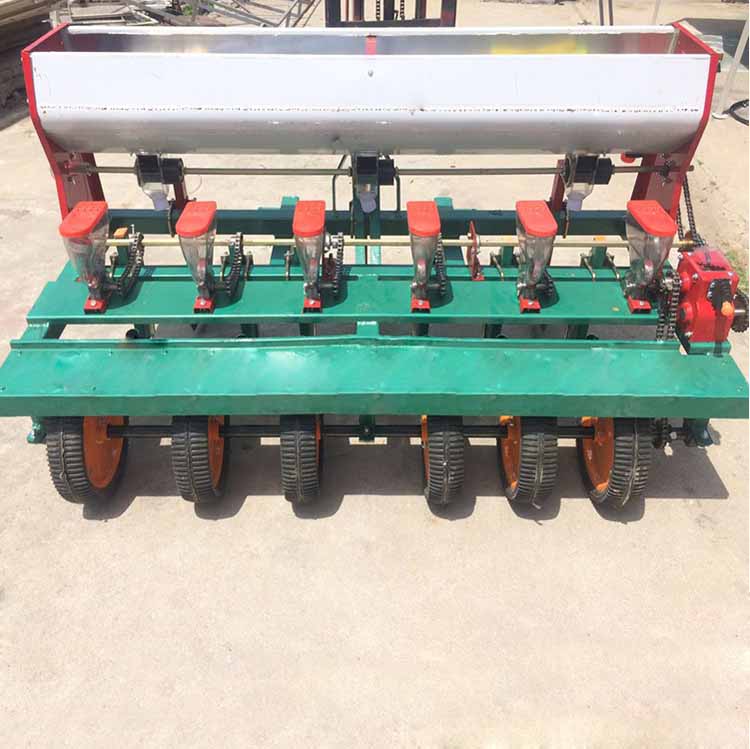

6 Rows Corn Seeder, 6 Rows Maize Planter
Product introduction:
This machine is 6 rows corn planters,it matched with tractor in 12-40HP for working, mainly used for precise sowing single seed or double seeds corn in no-tillage field, can drill graininess fertilizer, which can finish furrowing channel for fertilizer , furrowing seeds channel , sowing seeds, covering, pressing etc. during one operation.
Features of corn seeder:
1. High precision seeding, the qualified ratio of corn kernel can reach more than 80% ;
2. High-speed operation. The speed of seeding can reach 8 km/h when the planting spacing less than 20 cm;
3. Accurate hole distance. Seedling evenly distributed, reduce the competition of the seeding growing, enable the fully individual growth and the high output of crop;
4. Powerful Transmission System: The transmission axles of each row are contacted as a whole, driving with consistent turning speed. Even if one of the rows’ ground wheel slips suddenly, it wont affect the normal sowing;
5. Easy-operated Gear Box lever. The whole seeders’ planting spacing of each row can be changed as long as changing the transmission ratio of gearbox;
6. High quality Gears and Transmission components. All the gears in gearbox are made of the best steel carburized, all the transmission Components were put to use the quality of rolling bearing, reliable performance.
We also have 6 rows,4 rows,3 rows corn seeding machine,go to view more corn seeders.
| Model | 2LY—5 | 2LY—6 |
| Overall dimensions L×W×H (mm) | 2900X1630X980 | 3600X1630X980 |
| Weight (kg) | 490 | 580 |
| Minimum Power of tractor (HP) | >50 | >60 |
| Working efficiency (ha./hour) | 0.5-0.74 | 0.6-0.89 |
| Sowing number | 5 | 6 |
| Row distance(mm) | 600 | 600 |
| Fertilizer hopper capacity (L) | 200 | 240 |
| Seeds hopper capacity (L) | 8.5x5 | 8.5x6 |
| Type of seeding mechanism | ladle-type | ladle-type |
| Type of fertilizer feed | Nylon big external grooved sheave | Nylon big external grooved sheave |
| Opening share of fertilize | Shovel type opening share | Shovel type opening share |
| Tilling depth (mm) | 60~80 | 60~80 |
| Fertilizing depth (mm) | 60~80 | 60~80 |
| Seeding depth (mm) | 30-50 (adjustable) | 30-50 (adjustable) |
| Linkage type | Three-point rear suspension | Three-point rear suspension |
| Driving style | land wheel | land wheel |
| Seeding crop type | Corn&Soybean | Corn&Soybean |
| Sowing rate (kg/Acre) | 0.3~0.5 | 0.3~0.5 |
| Planting distance (mm) | 120 165 180 225 250 310 | 120 165 180 225 250 310 |
| Vertical distance seeds and fertilizer in fields (mm) | 50 | 50 |
