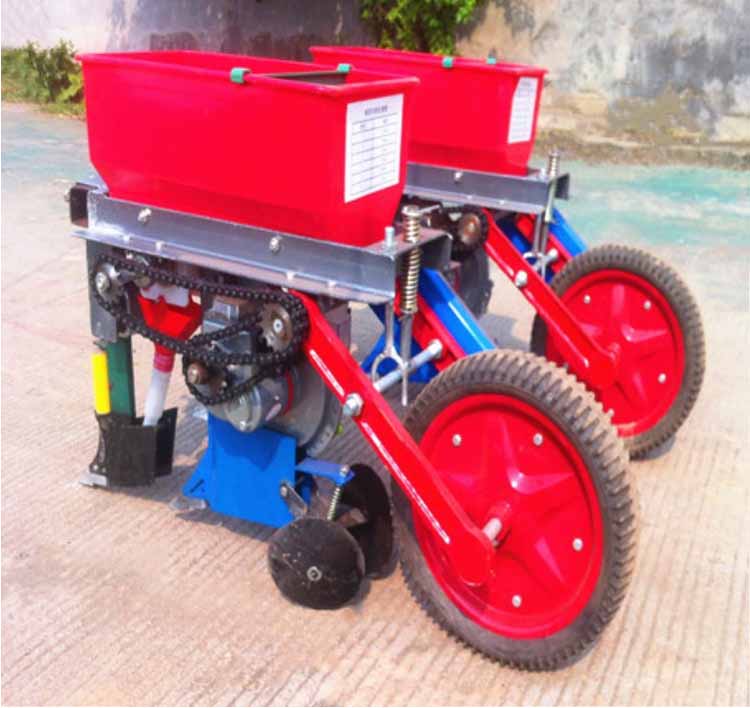

2 Rows Corn Seeder

    This machine is 2 rows corn planters,it matched with tractor in 12-40 HP for working, mainly used for precise sowing single seed or double seeds corn in no-tillage field, can drill graininess fertilizer, which can finish furrowing channel for fertilizer , furrowing seeds channel , sowing seeds, covering, pressing etc. during one operation.
DETAILS


2 Rows Corn Seeder


Product introduction:

This machine is 2 rows corn planters,it matched with tractor in 12-40HP for working, mainly used for precise sowing single seed or double seeds corn in no-tillage field, can drill graininess fertilizer, which can finish furrowing channel for fertilizer , furrowing seeds channel , sowing seeds, covering, pressing etc. during one operation.


Features:

1. Discharging seeds machine has precise sowing rate, the standard seeds index number is up to above 80%.

2. Adopt normal filling seeds, could work with high speed, when the plant space is not less than 20cm, working speed could reach 8km/hour.

3. Holes spacing is precise, plant is even-distributed, small competition, individual advantage could be given full development, vigorous crops, high harvest.


We also have 6 rows,4 rows,3 rows corn seeding machine,go to view more corn seeders.


Model2LY—22LY—32LY—4
Overall dimension(L*W*H)mm1500×1248×9801500×1682×9801500×2273×980
Weight(kg)150200280
Matched power(hp)8.8~13.2 (12~18)11~18.3 (15~25)18.3~29.4 (25~40)
Rows234
Row spacing(mm)530~780530~683530~622
Plant spacing(mm)120,165,180,225,250,310
Plant spacing qualified rate≥90%≥90%≥90%
Opening depth(mm)60~8060~8060~80
Fertilizing depth(mm)60~8060~8060~80
Seeding depth(mm)30~5030~5030~50
Max.ha.fertilizing amount(kg)600600600
Ha.seeding amount(kg)1.5~2.51.5~2.51.5~2.5
Seeds breakage(%)≤1.5%≤1.5%≤1.5%
Fertilizer hopper volume(L)130195260
Seeds hopper volume(L)8.5×28.5×38.5×4
Allowed Max.working speed(km/h)4.0( plant spacing 120mm) 5.8(plant spacing 165mm) 6.4(plant spacing 180mm) 8.0( plant spacing 225mm) 8.9(plant spacing 250mm) 11.0(plant spacing 310mm)
Pure working efficiency(ha./h)(3~4.5)(4.5~6.7)(6~9)
Transporting Min.ground clearance300mm300mm300mm
The Min. Level distance between Seeds bed and fertilizer bed(mm)>50>50>50
