LY-50 Automatic Meat Somker

Automatic meat smoker is the key equipment of cooked meat products for meat processing. It has the function of drying, baking, smoking, steaming etc. The operation is very simple, convenient and reliable.

Sent E-mail INQUIRY

DETAILS

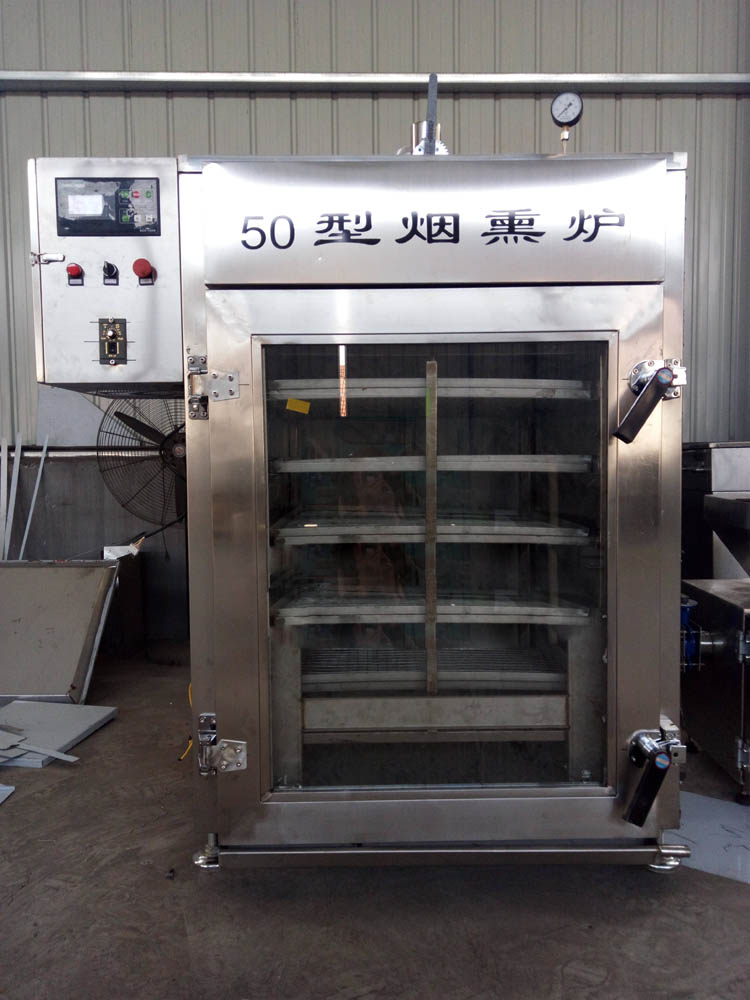

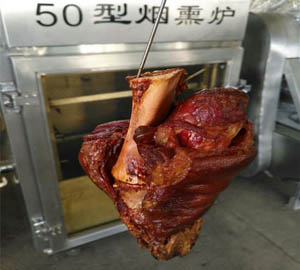

LY-50 Automatic Meat Somker

Application:

It suitable for a variety of products processing such as sausage, ham, chicken, duck and a variety of fish.

Characteristics:

1.Fully automatic electricity control, temperature and humidity curve can be seen.

2.Steam valve can control the steam flow with accurate temperature control,and the temperature tolerance of whole oven is less than 2 Celsius.

3.The fan will keep the temperature equilibrium of the oven by rotating 3000r/min, 25m/s air speed.

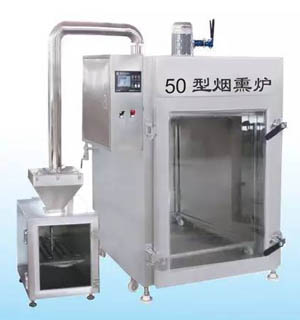

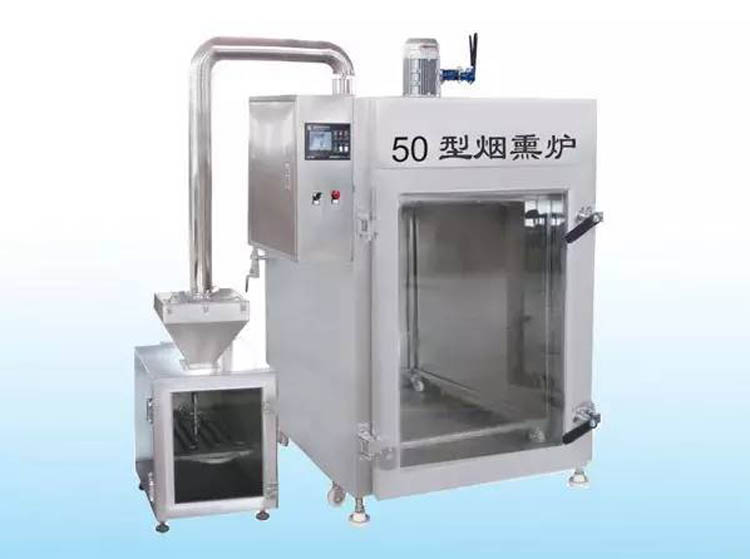

4.Smoke generator unit by using smoke of wood grain, smoke is stable, color fastly, and enter smoke box body clean and health.

5. Machine has special systems to control temperature, humidity and time. PLC or normal electrical control and single or double door are available.

Smoking Oven Structure:

Smoking chamber: All the components inside and outside are made of stainless steel, durable for corrosion resistance; meat processing in the chamber can be accomplished by setting technical parameters.

Heating system: It automatically generates steam to heat products directly and the steam output can be adjusted basing on the amount of products to be processed, but the pressure in the chamber should not be > 0.8 Mpa.

Air circulation system: Machine top is equipped with two speed electric fan, which helps the temperature consistency during processing products to ensure products quality after process.

Smoke system: There is a fuming plate inner the machine and the operator can adjust the time and smoke amount by the smoke switch button.

Electrical control system: Fully automatic electric/computer controlling and monitoring of processing food, easy and safe to operate.

Main Technology Parameters:

Model		Dimension(mm)	Working space (mm)	Capacity (KG)	Total Power(KW)			High pressure steam(Mpa)	Low pressure steam(Mpa)
Model		Dimension(mm)	Working space (mm)	Capacity (KG)	steam heating	electric heating	cold smoking	High pressure steam(Mpa)	Low pressure steam(Mpa)
LY-30	built-in smoke	100012701600	810740920	30	2.2	6.5	3.7	≤0.2	≤0.1
LY-30	external smoke	100016501600	810740920	30	2.32	6.62	3.7	≤0.2	≤0.1
LY-50	built-in smoke	110014201760	9108401080	50	3	7.5	4.5	≤0.2	≤0.1
LY-50	external smoke	110017501760	9108401080	50	3.12	7.62	4.62	≤0.2	≤0.1
LY-100	built-in smoke	120016001900	105012001200	100	5.5	11.5	7	≤0.2	≤0.1
LY-100	external smoke	120020301900	105012001200	100	5.62	11.62	7.12	≤0.2	≤0.1
LY-150	built-in smoke	120016002200	105012001500	150	5.5	11.5	7.7	≤0.2	≤0.1
LY-150	external smoke	120020302200	105012001500	150	5.62	11.62	7.82	≤0.2	≤0.1
LY-200	built-in smoke	137018052500	105013501800	200	5.5	14.5	7.7	≤0.2	≤0.1
LY-200	external smoke	137023102500	105013501800	200	5.87	14.87	8.07	≤0.2	≤0.1
LY-250	built-in smoke	137018052900	105013502000	250	5.5	14.5	7.7	≤0.2	≤0.1
LY-250	external smoke	137023102900	105013502000	250	5.87	14.87	8.07	≤0.2	≤0.1
LY-500	built-in smoke	242018052900	211013502000	500	8	27	10.2	≤0.2	≤0.1
LY-500	external smoke	242023102900	211013502000	500	9.87	28.87	10.57	≤0.2	≤0.1
LY-750	built-in smoke	347018052900	306013502000	750	12	39	13.5	≤0.2	≤0.1
LY-750	external smoke (channel type)	347023102900	306013502000	750	13.87	40.87	13.87	≤0.2	≤0.1
LY-1000	built-in smoke	452018052900	411013502000	1000	16	52	20	≤0.2	≤0.1
LY-1000	external smoke (channel type)	452023102900	411013502000	1000	17.87	53.87	21.87	≤0.2	≤0.1
