DETAILS

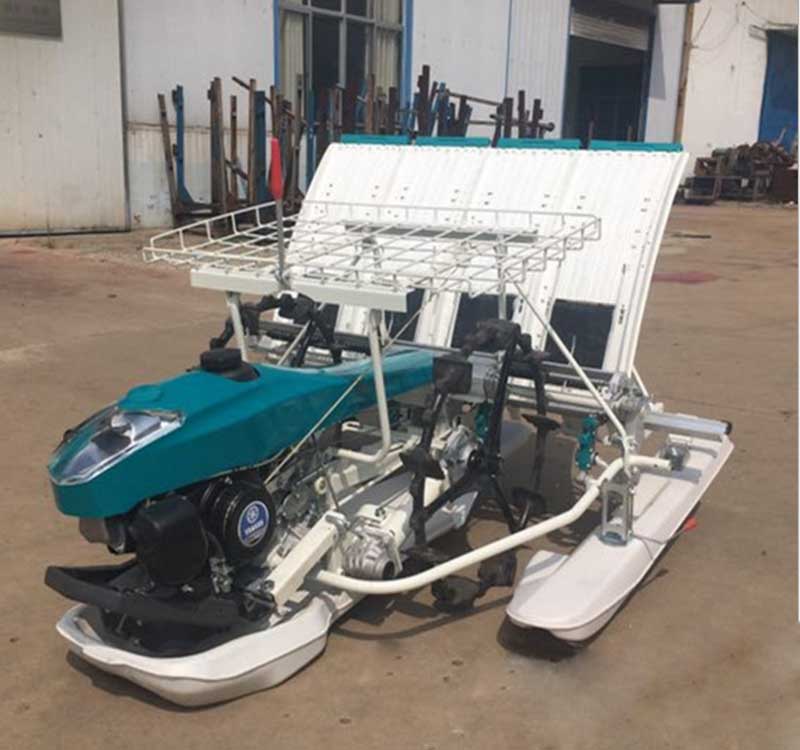

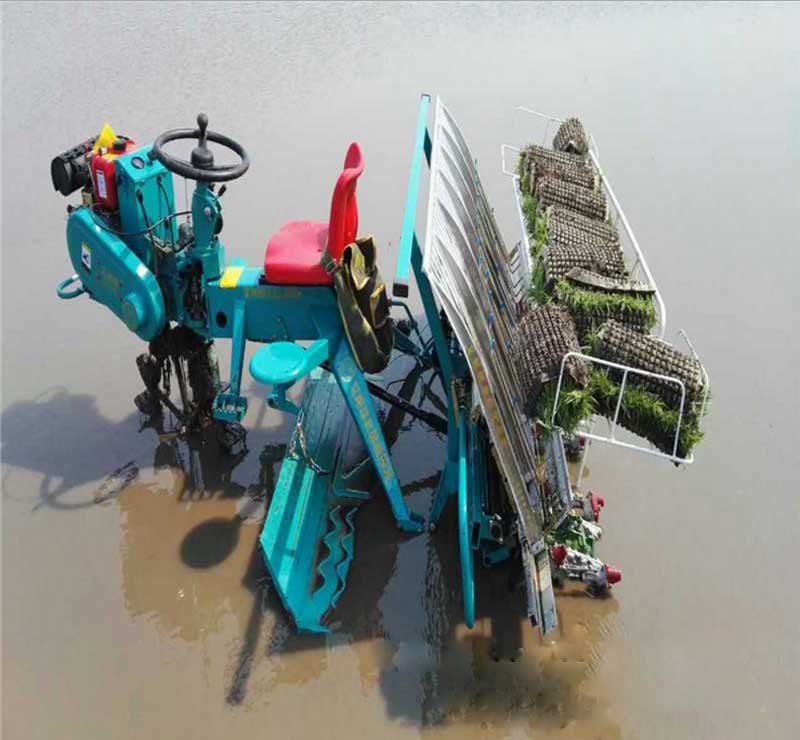

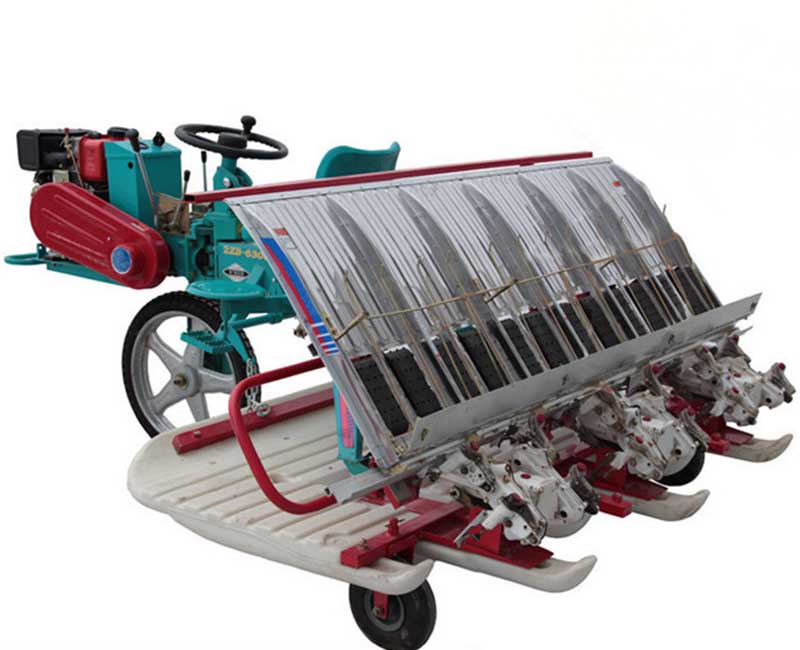

Instruction of ride type rice seeding transplanter:
1.New type transplanting arm, compel push and back structure which completely solve the none-seeding push problem.
2.Manual seeding moving structure, seeding more smooth, increase the transplanting seeding quality.
3.Width seeding belt ensures the seeding moving more smooth and reliable.
4.Can change electronic start engine (178FS 5.5 hp)option, bigger power;
5.Can use double wheel paddy wheel to avoid the machine sink in the mud.
6.Can install 360°adjustable steering wheel, can transplant when the machine turning, avoid manual transplant. Save labor force.
| 1.Brand | Lianyu |
| 2.Model | LY-RM03 |
| 3.Dimention:L*W*H ( mm) | 2410*2132*1300 |
| 4.Net Weight(kg) | 300 |
| 5:Diesel Engine Model | 178F (KOOP brand) |
| 6. Diesel Engine Output(kw/HP) | 3.68/4.93 |
| 7. Diesel Engine Rotating Speedr/min) | 2600 |
| 8.Number of Transplanting Row | 6 or 8 |
| 9.Row to Row Distance(mm) | 300 |
| 10.Hill to Hill Distance(mm) | 120/140 |
| 11.Transplanting Efficiency(Mu/H) | 2--3 |
| 12.Units Per 20ft Container 20 | 9 |
| Units Per 40ft Container 40 | 24 |
| 13.packaging size (L*W*H )(mm) | 2250*1760*600 |
| 14.G.W.(KG) | 360 |
Note:There are 4 rows, 6 rows, and 8 rows type.
